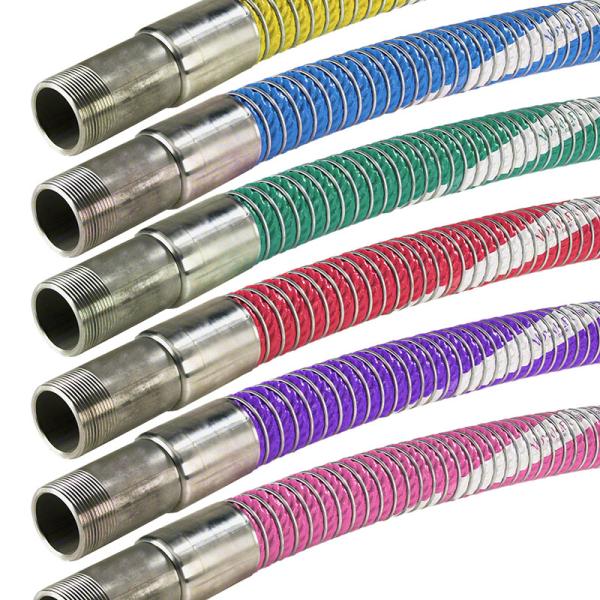

Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose

Name: Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose
Brand: Hongruntong Marine
Price: 95 USD

Quality Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose for sale

Brand Name : Hongruntong Marine

Model Number : HM-CHP120

Certification : EN13766 & EN13765

Place of Origin : China

MOQ : 1

Price : $95-$360

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2060 Pcs Per Month

Delivery Time : 5-7 Work Days

Packaging Details : Wooden Pallets, Wooden Box

Product Name : Composite Hose Pipe

Material : Polyester, Polypropylene, Polyethylene and PTFE

Reinforcement : High Tensile Steel Wire

Cover Material : Chemical resistant PVC

Size : Customized Size

Type : Oil Resistant Industrial Hose

Ends : Flange, Coupling, or As Required

End Connections : Camlock, Flanged, Threaded, Quick Disconnect

Temperature Range : -40°F to 212°F

Pressure Rating : Up to 250 PSI

Color : Black Red Blue Yellow or As Request

Flexibility : Excellent

Application : Chemical, Petroleum, Food, Pharmaceutical, Cryogenic, and more

Contact Now

Durable Composite Hoses for Versatile Fluid Transfer

Dixon Danoil Composite Discharge Hose Drain Fuel Hose Pipe Fittings

Designed for maximum efficiency and safety, our composite hoses are the ideal solution for transferring a wide variety of fluids in challenging industrial and marine environments. Whether you're dealing with aggressive chemicals, high-pressure liquids, or sensitive fuels, our composite hoses provide long-lasting performance with superior flexibility and resistance.

Product Name	Composite Hose Pipe
Inner Wire & Outer Wire	Stainless Steel 316 Stainless Steel 304 Galvanised Carbon Steel Polypropylene Coated Steel Aluminium
Inside Lining	Polypropylene P.T.F.E / E.C.T.F.E Poly-amide
Layers	Polypropylene Fabrics Polypropylene Films Poly-amide Fabrics Poly-amide Films Polyester Fabrics Polyester Films BOPP Films
Outer Cover	PVC Coated Polyester Poly-amide Polypropylene P.T.F.E
Max. Elongation	10% on proof pressure
Min. Burst Pressure	5 x working pressure (Safety factor 5:1)
Temperature Range	-30℃ to +100℃
Electrical Resistance	≤2.5 Ohm/m for under 50mm (2”) ≤1.0 Ohm/m for over 50mm (2”)
OEM, ODM	Accept
Standard	EN13766, EN13765

Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose

Model	Dimensions		Working Pressure		Safety Factor	Bending Radius	Weight	Length
Composite	[mm]	[inch]	[bar]	[psi]	Safety Factor	Bending Radius	[kg]	[m]
HM-CHP20	20	3/4"	16	230	5:1	80	0.8	40
HM-CHP25	25	1"	16	230	5:1	100	1	40
HM-CHP32	32	11/4"	16	230	5:1	125	1.3	40
HM-CHP40	40	11/2"	16	230	5:1	140	1.5	40
HM-CHP50	50	2"	16	230	5:1	180	2.5	40
HM-CHP65	65	21/2"	16	230	5:1	200	3.3	40
HM-CHP80	80	3"	16	230	5:1	260	4	40
HM-CHP100	100	4"	16	230	5:1	380	6.8	40
HM-CHP125	125	5"	16	230	5:1	440	9.2	40
HM-CHP150	150	6"	16	230	5:1	500	13.2	40
HM-CHP200	200	8"	16	230	5:1	750	18	40
HM-CHP250	250	10"	16	230	5:1	900	26	25
*Note: Various sizes can be customized according to the requirements.

Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose

FAQ

1. What type of fluid will be transferred with the hose?
Answer: The hose will be used for transferring marine fuel.

2. What temperature range should the hose withstand?
Answer: The hose needs to operate between -10°C and 80°C.

3. What pressure and vacuum ratings should the hose support?
Answer: The hose should withstand 20 bar pressure and a vacuum of 0.9 bar.

4. Do you require specific fittings for installation?
Answer: Yes, we need the hose to have flanged ends for secure installation.
